Durable 100L Plastic Coaming Box Lightweight PP Plastic Folding Container
Product Details:
| Place of Origin: | ANHUI,CHINA |
| Brand Name: | HUICHUANG |
| Model Number: | HC-08 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20PCS |
|---|---|
| Price: | USD0.5~10/PC |
| Delivery Time: | WITHIN 7 DAYS |
| Payment Terms: | T/T, L/C |
|
Detail Information |
|||
| Loading Capacity: | 300kg | Shape: | Rectangular |
|---|---|---|---|
| Advantage: | Reusable | Industrial Use: | Agriculture |
| Plastic Type: | PP | Capacity: | 100L |
| Sample: | Avaliable | Packing: | PE Flim |
| Logo: | Customer's Logo | Function: | Moving Logistic Storage |
| Custom Order: | Accept | Type: | Coaming Box |
| Process: | Silk Screen Printing | Surface: | Flat |
| Highlight: | 100l plastic coaming box,plastic coaming box lightweight,100l plastic pallet box |
||
Product Description
Plastic Coaming Box PP Hollow Sheet Folding Container Strong & Durable Lightweight
PRODUCT INFORMATION:
3 parts ( base , lid and sides) :
Base and Lid :HDPE ( high density polyethylene ) Hard Plastic
Sides:PP ( Polypropylene ) Corrugated Sheet
Product Feature :
Lightweight ; Waterproof ; Recyclable ; Washable ; Can be locked closed.
Side Material Properties :
- TEMPERATURE RANGE: -20°C to +120°C
- CHEMICAL RESISTANCE: Greases, oils, chemicals, solvents, acids and aqueous inorganic salt solutions.
- STERILIZABLE: Autoclave, gas sterilization and gamma rays.
- ADDITIVES: Non-toxic, non-polar, odorless and tasteless. (Anti-UV, flame-retardant (HB, V2 and V0), anti-bactericide, anti-static (Resistivity 106- 10¹¹ Ω⋅m ) and anti-conductive (Resistivity 10³ - 105 Ω⋅m)).
- Allows light to pass through above 75%.
- Prevents growth of mold and other foreign bodies.
- Edges: Fully sealed for greater strength.
- Assembly: Does not use pins or rivets. This ensures greater strength and requires no maintenance.
- Foldable; 90% less volume on return.
Lid and Base Material Properties:
- Manufacturing Process: Vacuum Forming
- Printing Type: Embossing
- Embossing with a mold.
- Assemble payload:300KG
Use Instructions:
1/ Do not hit against it.
2/ Do not drag it against the floor.
3/ Please assemble correctly to ensure the sleeve is fully fitted into the lid and pallet rails.
4/ Never stack boxes if not properly assembled. In addition to damage, this may lead to accidents.
5/ Do not store outdoors.
PRODUCT SPECIFICATION:
| Outer Diameter | Inside Diameter |
Weight (KG) |
Latch |
Working High (mm) |
Coaming High (mm) |
| 800*600 | 740*540 | 11 | Customized | -200 | -120 |
| 1000*600 | 940*540 | 14 | Customized | -200 | -120 |
| 1200*800 | 1140*740 | 18 | Customized | -180 | -120 |
| 1250*850 | 1200*800 | 18 | Customized | -180 | -120 |
| 1150*985 | 1100*940 | 18 | Customized | -180 | -120 |
| 1100*1100 | 1050*1050 | 22 | Customized | -200 | -120 |
| 1150*1150 | 1090*1090 | 22 | Customized | -200 | -120 |
| 1200*1000 | 1140*940 | 20 | Customized | -180 | -120 |
| 1220*1140 | 1150*1070 | 25 | Customized | -200 | -120 |
| 1350*1140 | 1290*1080 | 27 | Customized | -200 | -120 |
| 1470*1140 | 1410*1080 | 28 | Customized | -200 | -120 |
| 1550*1030 | 1490*970 | 31 | Customized | -200 | -120 |
| 1600*1150 | 1530*1080 | 33 | Customized | -200 | -120 |
| 1840*1130 | 1760*1060 | 35 | Customized | -200 | -120 |
| 2070*1150 | 1960*1080 | 48 | Customized | -200 | -120 |

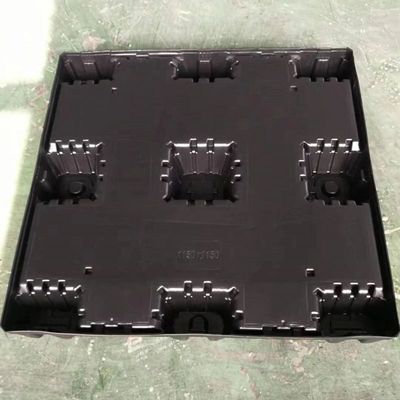

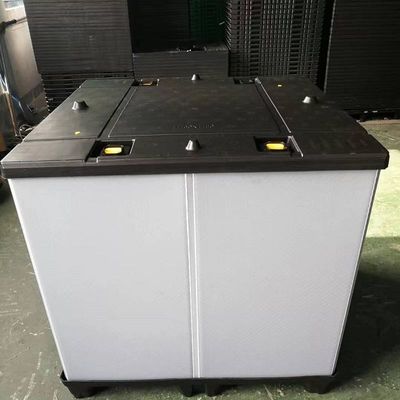

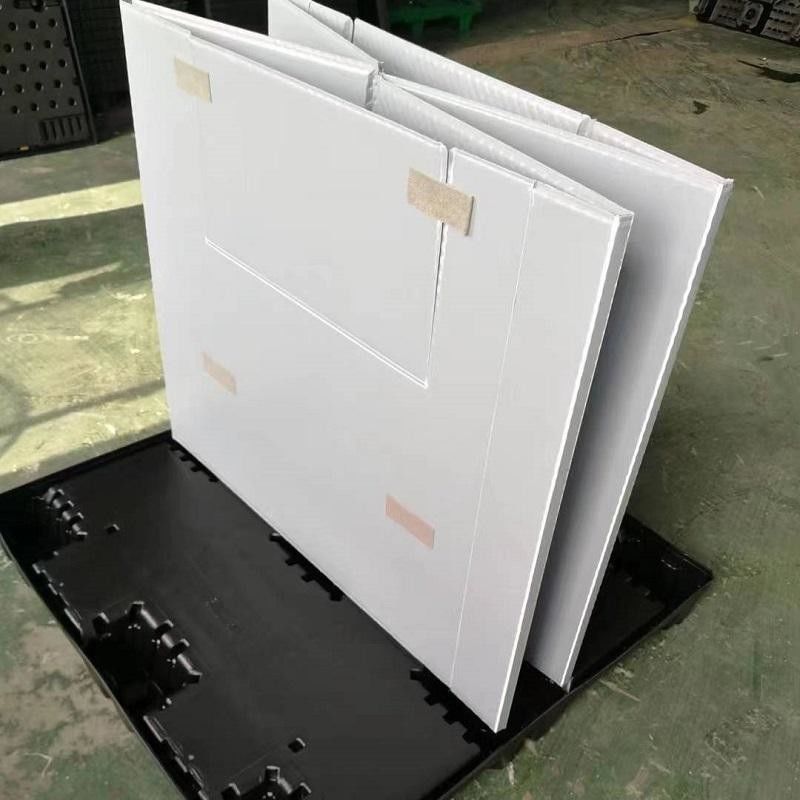

PRODUCT PICTURES:
NOTES:
- Remove all burrs and sharp edges.
- ⌀ 6.0 mm drain holes in all feet.
- All feet joints insert molded.
- “Mercado Livre” embossed on both sides along the length of the container, upside down on one side and upright on the other.
- Overall clearance ± 10 mm.
